PVC Welding Screens

and Booths

Our range of “Protector” mobile welding screens which comply with EN ISO25980:2014, have become renowned for their quality and resilience in the workplace.

Plus, to complement our range of mobile screens, we also supply bespokely designed PVC welding booths & frames made from individual PVC strips for static installations in manufacturing environments, engineering workshops and educational establishments.

The range consists of 6 different screens starting at 6′ x 6′ (1830mm x 1830mm) going right up to our ultimate screen, which is 13′ 6″ x 6′ 3″ (4115mm wide x 1900mm) high, complete with extending arms.

Our welding frames are not just for factories, they are also extensively used in schools, colleges, and training environments, providing a safe and secure solution to welding or grinding, flash and sparks.

The mobile screens comprise of either 1-piece PVC curtain or individual strips which overlap, depending on which frame is chosen.

Our rigid PVC welding curtains utilise our universal hook-on or bolt-on system and can even be used with our sliding track to create a curtain that can be slid out of the way, to provide easy access.

We also supply rolls of welding grade PVC in either red, green, or bronze. These are available up to 50 metres long in 300mm x 2mm, 470mm x 0.4mm and 570mm x 0.4mm/1mm.

"Protector" Mobile Welding Frames

6x6 Welding Screens

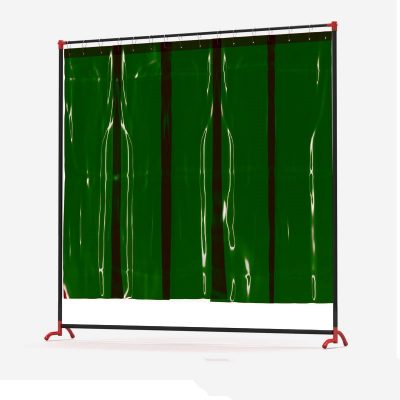

This 6′ x 6′ (1830mm x 1830mm) screen complies with EN ISO25980:2014 & is one of our most popular. It is available in either red or green.

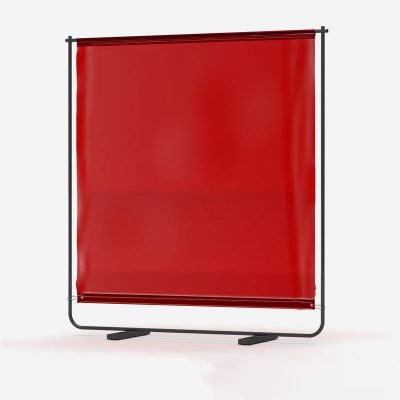

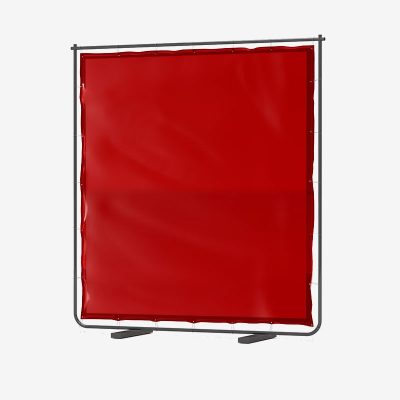

The 100 welding screens are our entry level mobile screens and can be assembled quickly, and easily using our “click & lock” system.

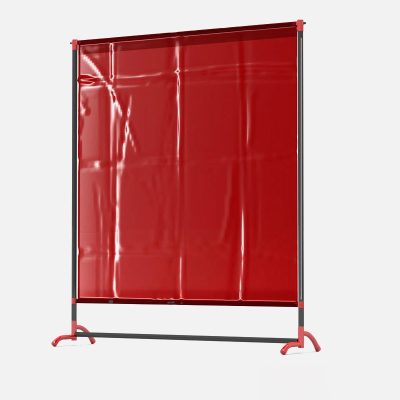

The robust 200 screen has a higher grade, 30mm diameter frame, than the 100 screen and weighs 4 kilos more.

Moving up the range, the 300 screen is the first in the range to use individual PVC strips which overlap to provide protection and is available in redand green.

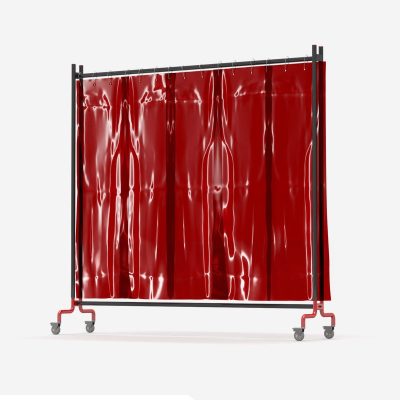

The 400 screen is available in red or green and has sturdy lockable castors to keep it in place. It measures 1960mm wide x 1900mm high.

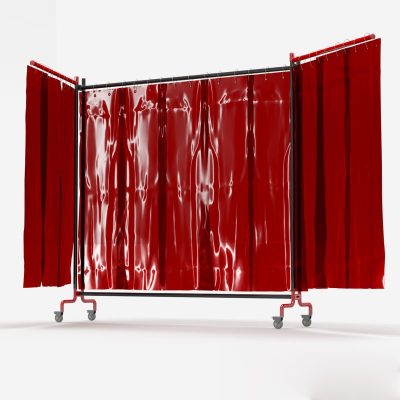

Our 500 screen is our top of the range screen covering over 4 metres wide by 1900mm high and is ideal for larger areas. The extendable arms allow you to create a 3 sided screen.

Custom Welding Booth
Custom Welding Booth

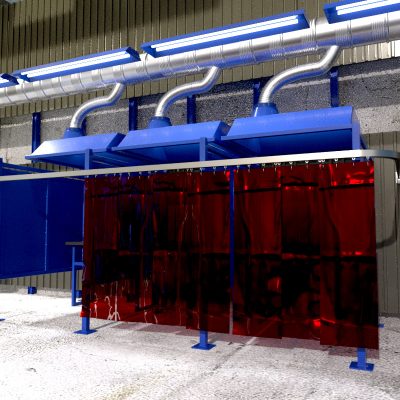

The picture above shows one of our bespokely designed PVC welding booths, made to a specific customer requirement complete with sliding track and welding grade PVC strips attached via eyelets. These booths, made from individual PVC strips are ideal for static installations in manufacturing environments, engineering workshops and educational establishments. They can also be supplied with our traditional hanging systems.
